Transistor as a Switch

In the previous lesson, we learned about the LDR (Light Dependent Resistor) and how it can detect changes in light.

Now we are going to learn about one of the most important components in electronics:

Transistors are used in almost every modern electronic device. They can be used to switch, amplify, and control electrical signals.

In this lesson, we will focus on one of the easiest and most useful applications:

Using a transistor as an electronic switch.

We will learn:

• 🔲 What is a transistor?
• 🧩 Types of transistors
• 🔌 Transistor terminals
• ⚡ How a transistor works
• 🔘 Transistor as a switch

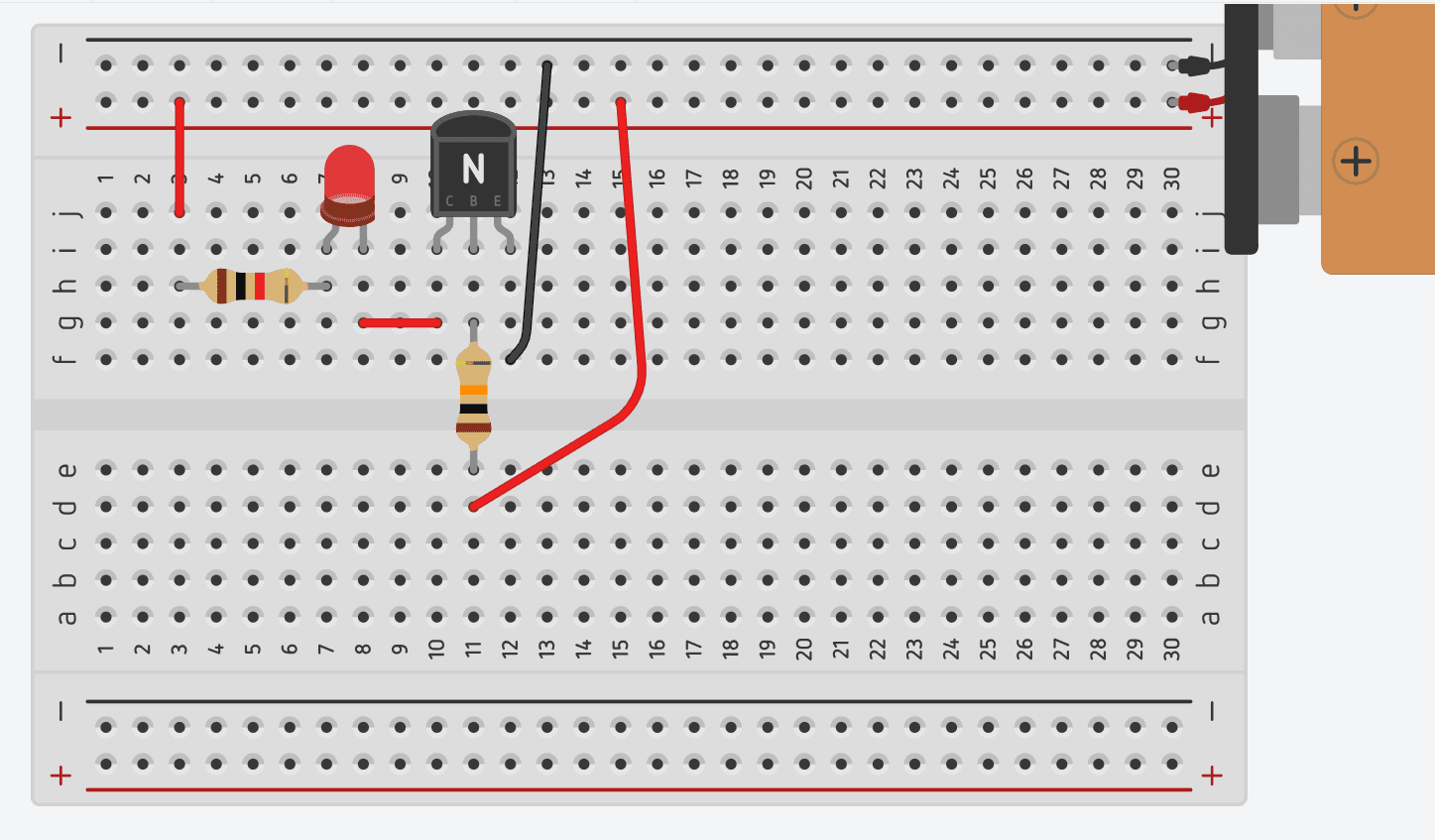

• 💡 Controlling an LED using a transistor
• 🧪 Building a simple transistor switching circuit

A transistor is a semiconductor device that can be used to control the flow of electrical current.

It can perform several important functions, including:

• Switching
• Amplification
• Signal processing
• Controlling loads

A simple way to think about a transistor is:

A transistor can act like a tiny electronic switch controlled by another electrical signal.

Transistors are the basic building blocks of modern electronics.

They are found in:

• Computers
• Mobile phones
• Televisions
• Radios
• Audio systems
• Sensors
• Microcontrollers
• Robots
• Power supplies

A modern processor contains billions of transistors.

Even though a single transistor is very small, millions or billions of them working together can perform extremely complex operations.

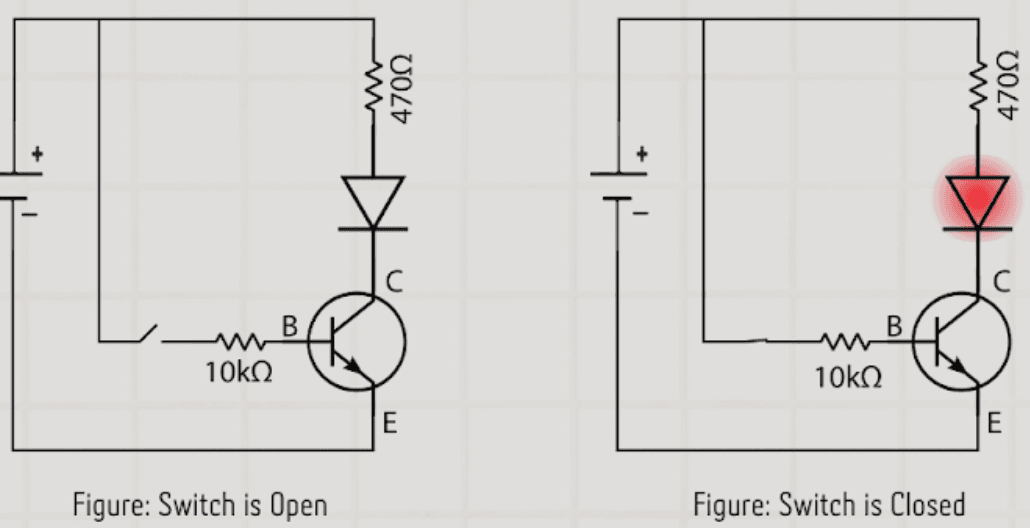

A transistor can control current between the collector and emitter using a signal applied to the base.

There are many types of transistors.

Two major categories are:

1. BJT

Bipolar Junction Transistor

Common examples:

• NPN
• PNP

2. FET

Field Effect Transistor

Examples include:

• JFET
• MOSFET

For our beginner electronics projects, we will mainly use a BJT, particularly an NPN transistor.

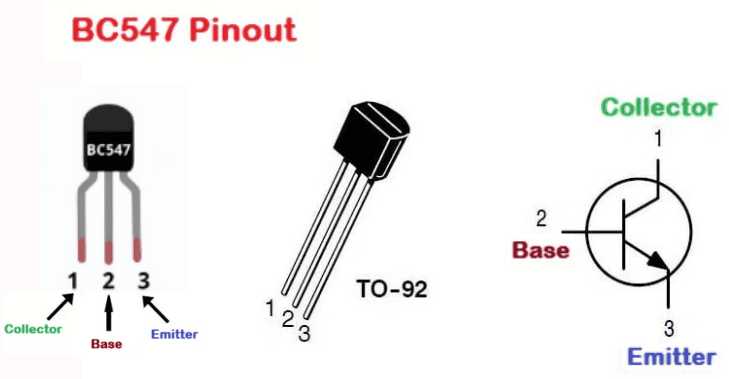

The BC547 is a commonly used NPN bipolar junction transistor (BJT). It is widely used in small-signal switching and amplification circuits, making it a good transistor for beginner breadboard projects.

The BC547 is particularly useful for the projects planned in your Basic Electronics section because it can be used with sensors and simple control circuits.

In this lesson, you learned:

• 🔲 What a transistor is
• 🧩 Different types of transistors
• 🔌 NPN transistor basics
• B — Base
• C — Collector
• E — Emitter
• ⚡ How a transistor controls current
• 🔘 How a transistor works as an electronic switch
